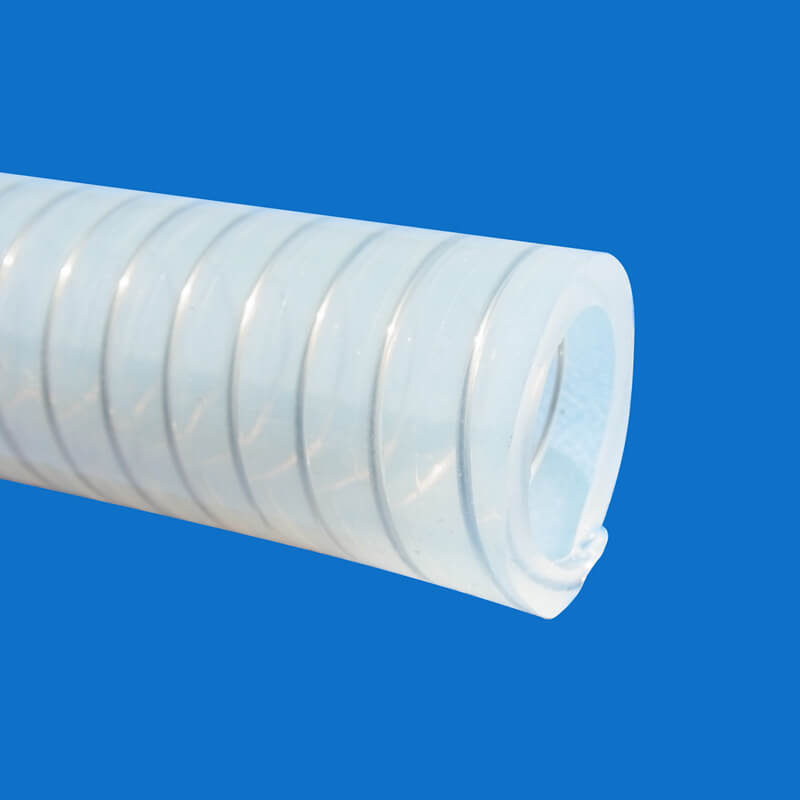

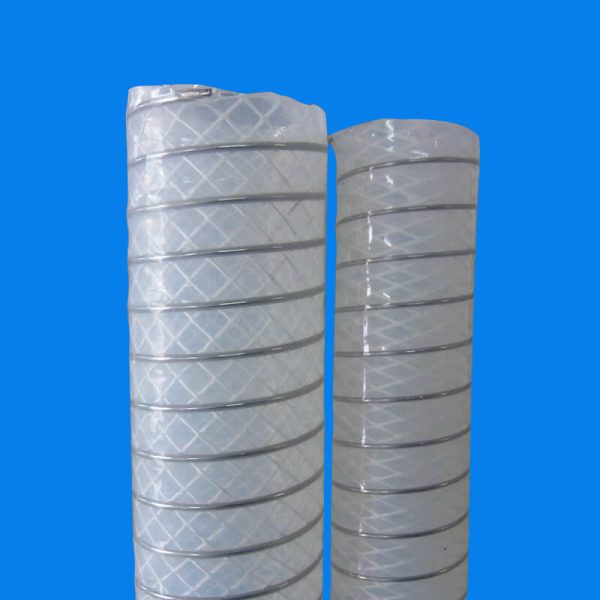

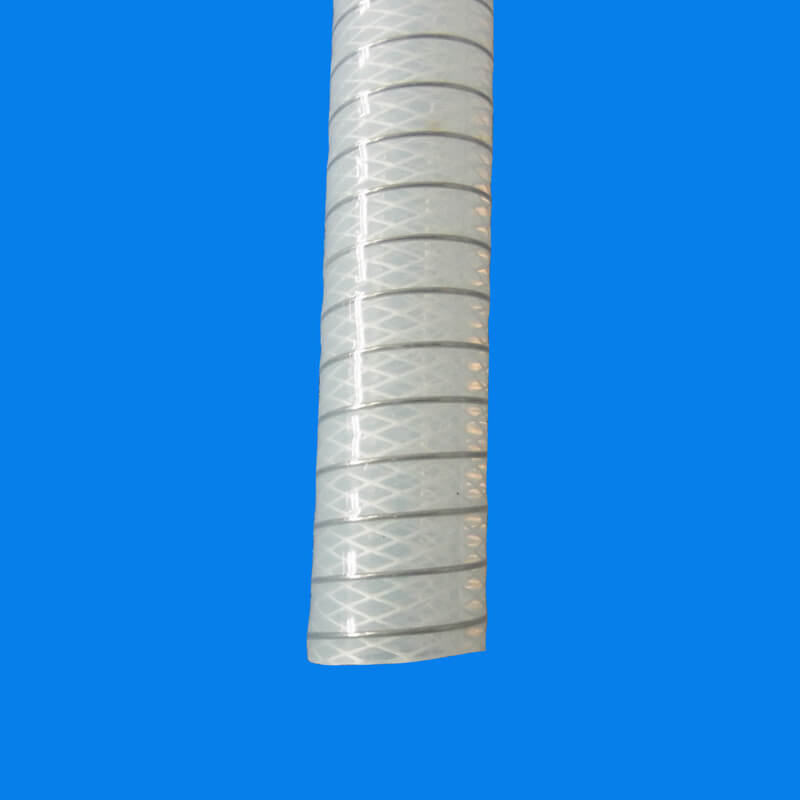

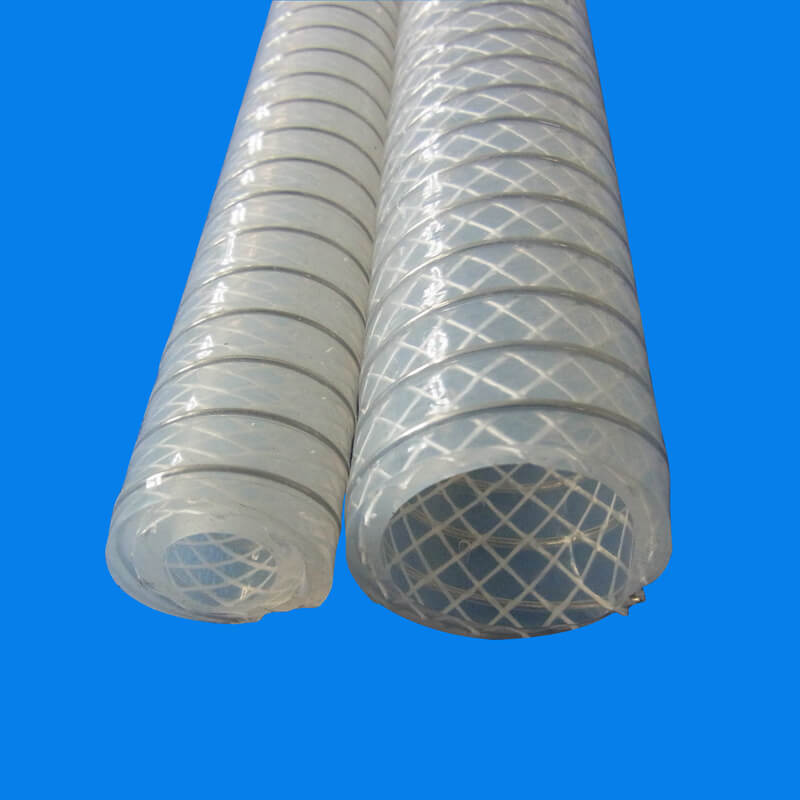

Stainless Steel Spiral Wire Reinforced Clear Silicone Hose
This stainless steel reinforced clear silicone hose offers exceptional purity and durability for demanding applications. This clear silicone tube, crafted from platinum-cured silicone, ensures visual monitoring of fluid transfer and easy cleaning. The spiral stainless steel provides superior pressure resistance and kink resistance for a long service life.
- Construction: Platinum-cured silicone tube with single-layer 304 stainless steel wire braiding (6mm spacing).
- Transparency: Crystal clear for visual flow monitoring and purity assurance.
- Hygiene: Smooth inner and outer walls for easy cleaning and sanitation.
- Durability: Resistant to high pressure, abrasion, kinking, and repeated sterilization.
- Temperature Range: -40°C to 220°C
- Compliance: FDA 21 CFR 177.2600 compliant for food contact.
Stainless Steel Clear Silicone Hose Description
Tenchy’s stainless steel clear silicone hose is a platinum silicone tubing engineered for demanding applications where both purity and durability are paramount. This clear silicone tube is ideal for industries like biopharmaceuticals, laboratories, and medical device manufacturing, where visual monitoring of fluid transfer and absolute cleanliness are essential.
Made from high-purity, platinum cured silicone, this transparent silicone hose ensures a smooth, inert pathway for sensitive materials. The silicone transparent tubing meets stringent FDA standards (FDA 21 CFR 177.2600), making it a trusted choice for applications requiring medical-grade silicone tubing.
Unlike hoses with fabric braids, this clear silicone hose features a spiral single-layer 304 stainless steel for superior pressure resistance and kink prevention. This wire-reinforced silicone hose design maintains flexibility while providing the strength needed for high-pressure systems.
The smooth inner and outer walls of this silicone transparent tube prevent particle trapping and facilitate easy cleaning and sterilization, making it suitable for repeated use. The clear silicone rubber tubing’s resistance to oil and fats further expands its application range, including the transfer of non-alcoholic beverages.
Stainless Steel Clear Silicone Hose Data Sheet
General Specifications
| Feature | Description |
| Production Process | Silicone Extrusion + Steel Wire Weaving |
| Vulcanization Process | Platinum Cured |
| Fabric Layer | None |
| Steel Wire | Single Layer 304 Stainless Steel, 6mm Spacing |
| Inner & Outer Wall | Transparent and Smooth |
| Standard Packing Length | 6 meters/bag (Customizable up to 6 meters) |
| FDA Compliance | Yes, FDA 21 CFR 177.2600 |
| Temperature Resistance | -40°C to 220°C |
| Sample Lead Time | 1-2 days (3-5 days for custom orders) |
| Daily Production Capacity | 1000 meters |
| Minimum Order Quantity (MOQ) | 30 meters |
| Hardness (Liner) | 70 ± 5A |
| Hardness (Cover) | 60 ± 5A |
| Tensile Strength | >8.5 MPa |
| Elongation at Break | >320% |
| Tear Resistance | >25 KN/m |
| Brittle Temperature | -40°C |
| Maximum Operating Temperature | 180°C |
Technical Specifications (by Size)
| Item No. | ID (mm) | Thickness (inch) | OD (mm) | Min. Bend Radius (inch) | Working Pressure (Bar @ 20°C) | Burst Pressure (Bar @ 20°C) | Vacuum (Bar) |
| MXSS-06 | 6.35 | 1/4″ | 5 | 0.64 | 7.50 | 22.5 | 0.91 |
| MXSS-10 | 10 | 3/8″ | 5 | 0.79 | 6.50 | 19.5 | N/A |
| MXSS-13 | 13 | 1/2″ | 5 | 0.91 | 6.10 | 18.3 | N/A |
| MXSS-19 | 19 | 3/4″ | 5 | 1.15 | 5.12 | 15.4 | N/A |
| MXSS-22 | 22 | 7/8″ | 5 | 1.30 | 4.20 | 12.6 | N/A |
| MXSS-25 | 25 | 1″ | 5 | 1.42 | 3.90 | 11.7 | N/A |
| MXSS-32 | 32 | 1-1/4″ | 5 | 1.69 | 3.30 | 9.9 | N/A |
| MXSS-38 | 38 | 1-1/2″ | 5 | 1.89 | 3.12 | 9.36 | N/A |
| MXSS-51 | 51 | 2″ | 5 | 2.44 | 2.45 | 7.35 | N/A |
| MXSS-76 | 76 | 3″ | 5 | 3.39 | 1.78 | 5.34 | N/A |
| MXSS-100 | 102 | 4″ | 5 | 4.49 | 1.00 | 3.00 | N/A |
Why Choose Tenchy's Stainless Steel Clear Silicone Hose
Looking for a reliable and visually clear silicone tube clear for your demanding applications? Tenchy’s stainless steel clear silicone hose provides the perfect blend of purity, visibility, and durability. Contact us today to discuss your specific requirements and request a quote for your next project.
Products Categories
Get A Free Quote
Stainless Steel Clear Silicone Hose Applications
- Biopharmaceutical and Pharmaceutical: Sterile fluid transfer, filtration, and processing.
- Laboratory: Chemical and reagent handling, analytical instrumentation.
- Medical: Fluid and gas transfer in medical devices, drug delivery systems.
- Food & Beverage: Transfer of water, juices, and other compatible liquids.
