Polyster Braided Reinforced Silicone Hose

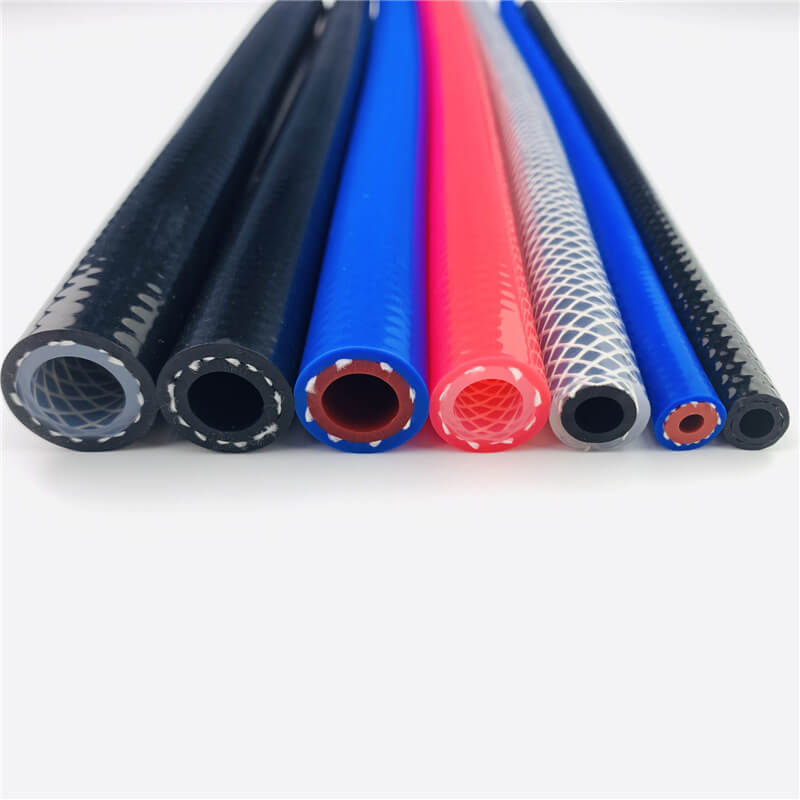

4. Polyster braided reinforced silicone hose (1)

Braided silicone hoses from Tenchy emerge as vital components spanning diverse industries such as medical, pharmaceutical, food and beverage, automotive, aerospace, industrial, manufacturing, HVAC, and plumbing. Setting a benchmark, Tenchy’s Polyster Braided Reinforced Silicone Hosereinforced with braided fibers, culminating in unparalleled flexibility, durability, and resistance. With an unwavering ability to brave high temperatures, chemicals, UV rays, and ozone

Main Features of Polyester Reinforced Silicone Hose

  • Platinum cured for the highest degree of purity
  • Withstand extreme temperature, chemicals, ozone, radiation, U.V, gases, moisture
  • Able to use in vacuum environment, anti-breaking, and anti-kinking
  • Durable and Reusable – able to withstand repeated sterilization
  • Working temperature range:  -40℃ to 180℃;

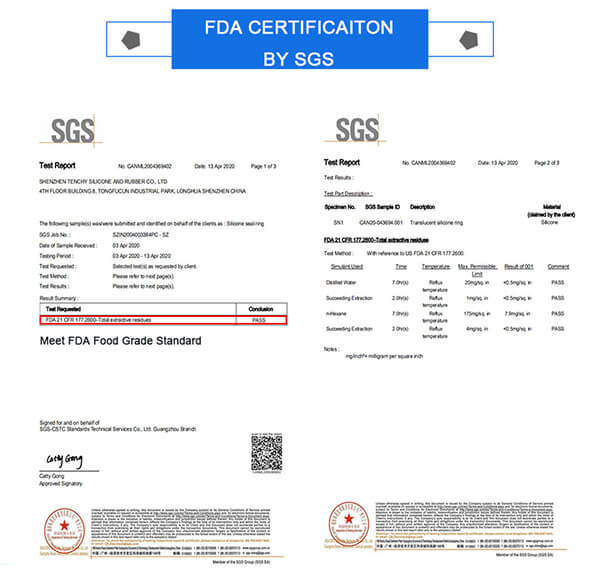

  •  Raw materials meet FDA requirements per FDA 21 CFR 177.2600 for use with food contact surfaces

The polyster braided Reinforced silicone hose or braided silicone hose is made of polyester and high elasticity silicone, and it is widely used in food machinery and medical equipment.

The silicone hose or silicone braided hose is platinum cured ,which makes the hose odorless and tasteless,In addition, the inner and outer walls of the silicone hose are completely smooth, making the flow of materials in the sanitary hose fully smooth, and at the same time making the cleaning of the silicone hose more convenient and effective. It is the hose for the pharmaceutical industry and Food&Beverage equipment.

Polyster braided reinforced silicone hose (2)

Types of Braiding Techniques

Braided silicone hoses can be reinforced using different braiding techniques, including:

  • Standard braiding: This technique involves braiding the silicone material with a single layer of fibers, providing excellent flexibility and durability.
  • Multilayer braiding: This technique involves braiding the silicone material with multiple layers of fibers, providing increased strength and pressure resistance.
  • Spiral braiding: This technique involves wrapping the silicone material with a spiral of fibers, providing excellent flexibility and durability.
  • Flat braiding: This technique involves braiding the silicone material with flat fibers, providing increased strength and pressure resistance.
  • Knitted braiding: This technique involves knitting the silicone material with fibers, providing excellent flexibility and durability.

Basic Information of Braided Polyester Silicone Pipe

  • Production process: silicone extrusion + polyster weaving
  • Fabric material: Polyester
  • Inner wall: transparent and smooth
  • Outer wall: transparent and smooth
  • Color: Clear or customized
  • Inner diameter range 1-90mm
  • Diameter tolerance 0.1-0.5mm
  • Standard length: 20 meters/bag
  • Sample period: 1-2 days(3-5 days for customized tubing)
  • Daily capacity: 1,000 meters
  • MOQ: 100 meteres

Attention before Use

The braided tube itself is a flexible tube, which can be sterilized by CIP, SIP, or ray sterilization or autoclave.The finished hose is packed in individual PE bag.

The smooth inner wall of the hose is resistant to adsorption and is easy to rinse and clean. The silicone hose can be sterilized at low pressure or in a high-temperature sterilization system at 120°C.

Physical Properties

Hardness Liner

70±5A

Hardness Cover

60±5A

Tensile strength

>8.5MPa

Elongation at break

>320%

Tear resistance (tear strength)

>25KN/m

Britle temperature

-40°C (-40 ℉)

Maximum Operating Temperature

180°C (356 ℉)

Specification of Polyester Braided Flexible Silicone Hose

Item Code

ID

OD

Min. Bend

Radius Inch

Working Pressure

Burst Pressure

(mm)

(inch)

(mm)

(inch)

(mm)

(inch)

(Bar)

Psi

(Bar)

(Psi)

RFSB-003

3.18

1/8’’

9.00

0.354

12.7

1/2’’

13.8

200

41.4

600

RFSB-005

5.00

3/16’’

11.00

0.433

25.4

1.00’’

11.7

170

35.1

509

RFSB-006

6.35

1/4’’

13.20

0.519

38.1

1-1/2’’

9.3

135

27.9

405

RFSB-009

9.52

3/8’’

16.60

0.654

57.15

2-1/4’’

7.0

101

21.0

305

RFSB-012

12.70

1/2’’

20.30

0.799

70.00

2-3/4’’

5.7

82

17.1

248

RFSB-015

15.87

5/8’’

24.50

0.965

82.55

3-1/4’’

4.3

62

12.9

187

RFSB-022

22.20

7/8’’

27.90

1.099

145

5-3/4’’

3.3

47

9.9

144

RFSB-025

25.40

1.00’’

34.50

1.358

157

6-1/4’’

3.0

43

9.0

131

RFSB-031

31.75

1-1/4’’

40.8

1.606

204

8.00’’

2.3

34

6.9

100

Applications of Polyster Braided Reinforced Silicone Hose

  • Peristaltic pump
  • Food and beverage transmission,such as milk and dairy products, beer and wine, and soft drinks.
  • Dairy products
  • Pharmaceutical,such as drug delivery systems, surgical equipment, and bioprocessing.
  • Cosmetic
  • Beverage bottle filling and filling
  • Chemical feeding
  • Fermentation tank
  • Physical Properties
  • Automotive and aerospace industries, such as engine cooling systems, fuel and oil lines, and hydraulic systems.
  • Industrial and manufacturing industries, such as chemical processing, water treatment, and pneumatic systems.
  • HVAC and plumbing industries, such as air conditioning systems, water supply lines, and drainage systems.

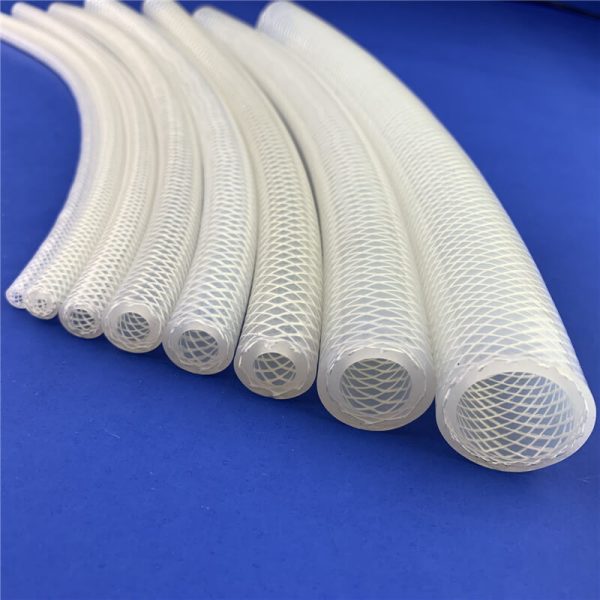

Polyster braided reinforced silicone hose (3)

Factors to Consider When Choosing Braided Silicone Hoses

  • Temperature range: The temperature range of the hose should be compatible with the application’s temperature requirements.
  • Pressure rating: The pressure rating of the hose should be compatible with the application’s pressure requirements.
  • Hose diameter and length: The hose diameter and length should be compatible with the application’s flow rate and space requirements.
  • End fittings and connections: The end fittings and connections should be compatible with the application’s plumbing and mechanical requirements.
  • Regulatory compliance: The hose should comply with regulatory standards, such as USP Class VI criteria, European Pharmacopoeia standards, and FDA regulations.
  • Repeated steam sterilization or long-term exposure to high temperature or high pressure, the wall of hose will eventually become viscous, and it must be replaced at this time.
  • Pay attention to the selection of joints and clamps. Sharp pagoda-shaped joints and metal clamps may pierce the hose wall and cause the hose to rupture, especially when handling high pressure.
  • Braided reinforced silicone tube cannot be used for body transplantation and continuous steam application

Maintenance and Care of Braided Silicone Hoses

To ensure the longevity and reliability of braided silicone hoses, proper maintenance and care should be observed, including:

  • Inspection and testing: The hose should be inspected and tested regularly for signs of wear, tear, and damage.
  • Cleaning and sterilization: The hose should be cleaned and sterilized regularly to prevent contamination and ensure hygiene.
  • Storage and handling: The hose should be stored and handled properly to prevent damage and prolong its lifespan.
  • Replacement and repair: The hose should be replaced or repaired immediately if signs of wear, tear, or damage are detected.

Conclusion

At the forefront of innovation, Tenchy’s braided silicone hoses emerge as indispensable components across diverse industries, offering remarkable flexibility, durability, and resistance against high temperatures, chemicals, UV rays, and ozone. Whether in medical, pharmaceutical, food and beverage, automotive, aerospace, industrial, manufacturing, HVAC, or plumbing sectors, Tenchy’s commitment to excellence shines through. Selecting the ideal braided silicone hose tailored to specific applications is pivotal for securing optimal performance and unwavering reliability. As we look ahead, Tenchy anticipates pushing the boundaries of braided silicone hose technology, unveiling advancements that will further elevate performance and open new horizons of application.
