Silicone Cable Wrap Tubing for Fiber Optic & Wire Protection
Silicone Cable Wrap Tubing for Fiber Optic & Wire Protection - Image 2

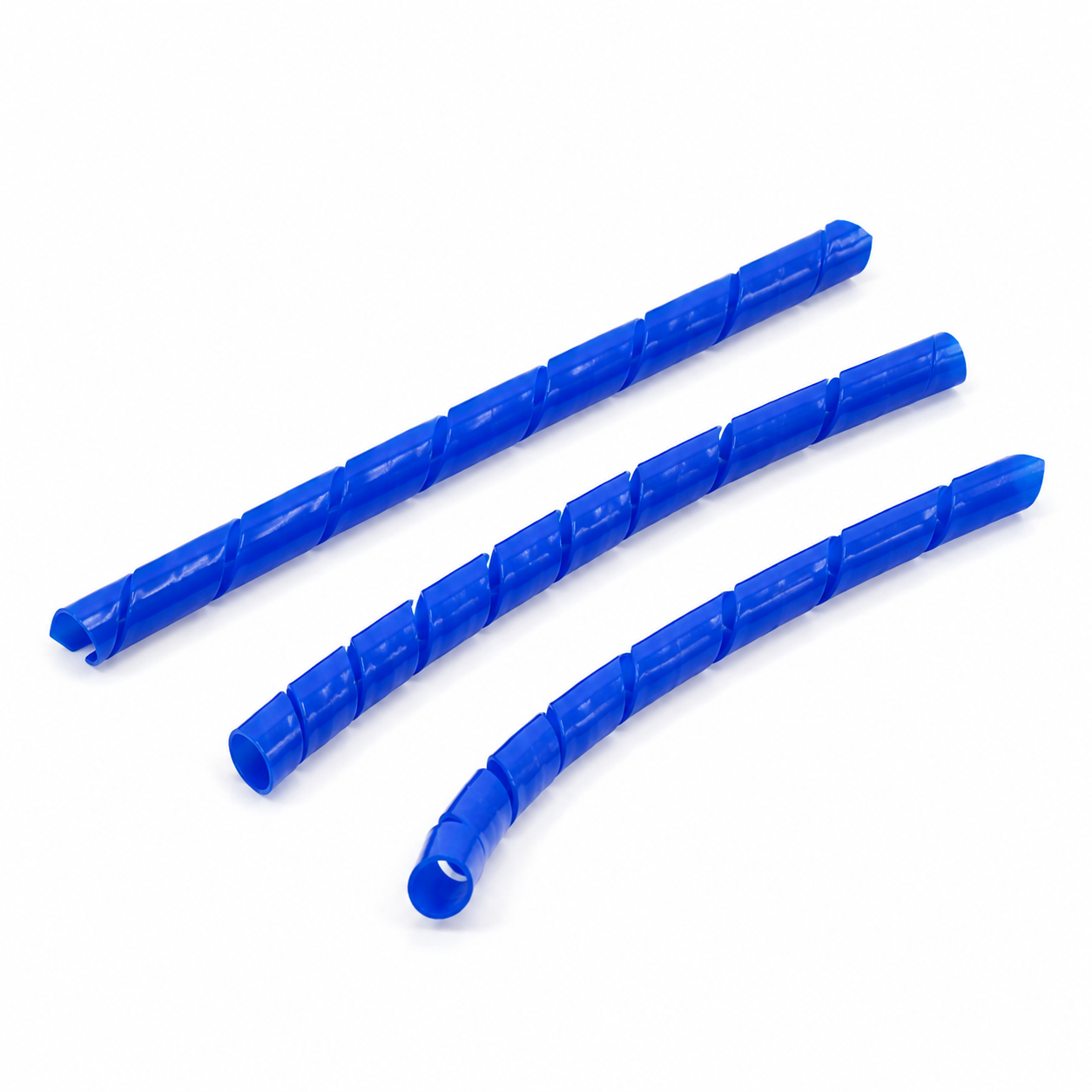

Silicone Cable Wrap Tubing for Fiber Optic & Wire Protection - Image 3

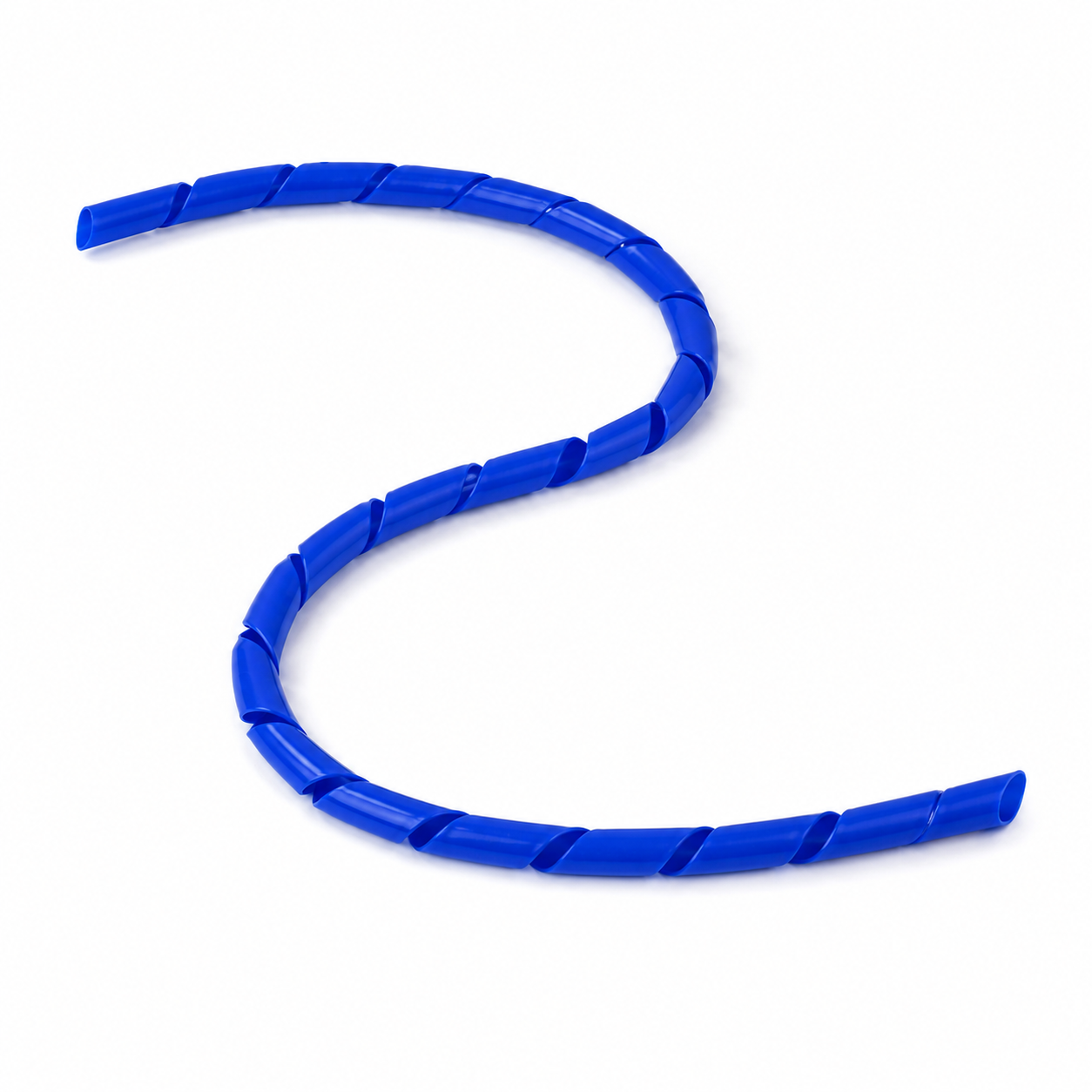

Silicone Cable Wrap Tubing for Fiber Optic & Wire Protection - Image 4

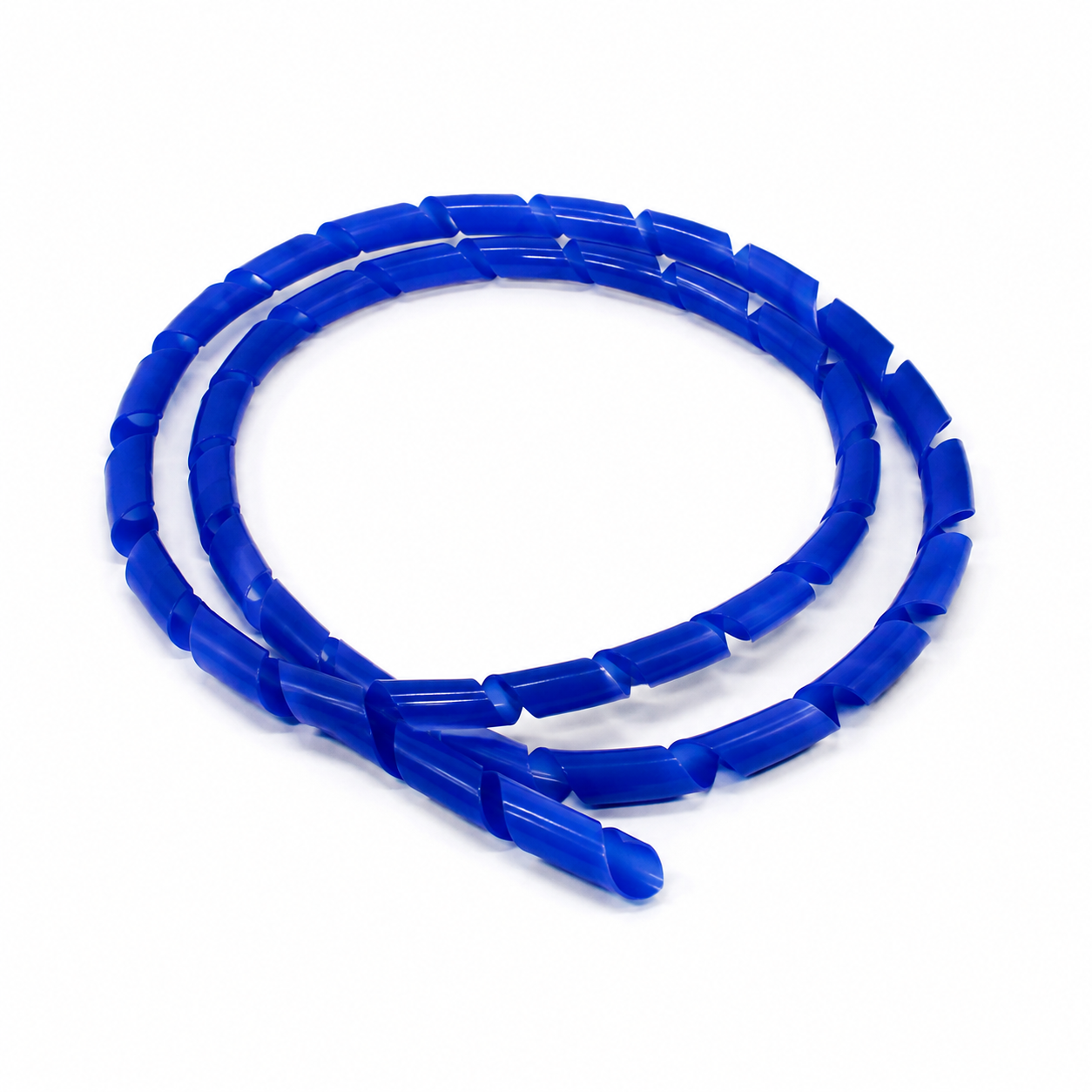

Silicone Cable Wrap Tubing for Fiber Optic & Wire Protection - Image 5

Silicone Cable Wrap Tubing for Fiber Optic & Wire Protection

Tenchy manufactures flexible silicone cable wrap tubing, also known as silicone spiral wrap, for organizing and protecting fiber optic cables, communication cables and electrical wiring.

Material Description

  • Made from flexible silicone rubber
  • Smooth surface with good flexibility and comfortable handling
  • Open spiral design for easy installation and removal
  • Standard hardness: 70 Shore A
  • Standard color: blue
  • Black, red, green, white, gray and other custom colors are available
  • Standard roll length: 100 meters
  • Cut-to-length service is available

Main Features

  • Flexible spiral structure follows straight, curved and irregular cable routes
  • Easy to install without disconnecting the cable or terminal
  • Protects cables against abrasion, scratching and external contact
  • Helps organize loose wires and reduce cable tangling
  • Cables can branch out at any position along the wrap
  • Good resistance to water, wear and aging
  • Maintains flexibility over a wide temperature range
  • Can be removed and reused when cable arrangements need to be changed
  • Multiple sizes and colors available for cable identification
  • Suitable for protecting individual cables or small cable bundles

Silicone Spiral Wrap Description

Tenchy provides flexible silicone spiral wrap tubing designed to organize, bundle and protect fiber optic cables, communication cables, jumper wires and other electrical wiring. The open spiral structure allows the wrap to be installed around existing cables without disconnecting terminals or connectors.

Made from flexible silicone rubber, the spiral wrap tubing can follow cable bends and irregular routing while helping protect the cable surface from abrasion, scratching and repeated contact. Individual cables can also branch out from any position along the spiral wrap.

The tubing offers good resistance to water, wear, aging and temperature changes. Different inner diameters, outer diameters, spiral pitches, colors and cut lengths can be customized according to the cable size and application requirements.

Silicone Spiral Cable Wrap Data Sheet

Silicone Cable Wrap Hardness

  • Standard hardness: 70 Shore A
  • Other hardness options can be customized upon request

Custom Size

  • Inner diameter, outer diameter and spiral pitch can be customized
  • Custom outer diameters up to 20 mm are available
  • Different spiral pitches can be produced for different cable sizes
  • Cut-to-length service is available
  • Custom colors can be matched according to customer requirements
  • Samples can be produced for size and installation testing

Product Specifications

Property Standard Description
Material Silicone rubber
Structure Open spiral-cut silicone tubing
Standard Hardness 70 Shore A
Temperature Resistance Approximately -60°C to 200°C, depending on application conditions
Standard Color Blue
Available Colors Black, red, green, white, gray and custom colors
Standard Packaging Length 100 meters per roll
Custom Service Size, color, spiral pitch and cut length

Standard Specifications

Inner Diameter (ID) Outer Diameter (OD) Spiral Pitch (W) Hardness
1.5 mm 3 mm 5-6 mm 70 Shore A
2.0 mm 4 mm 6-7 mm 70 Shore A
3.0 mm 5 mm 7-8 mm 70 Shore A
4.0 mm 6 mm 7-8 mm 70 Shore A
5.0 mm 8 mm 7-8 mm 70 Shore A
6.0 mm 8 mm 8-9 mm 70 Shore A
8.0 mm 11 mm 8-10 mm 70 Shore A
10.0 mm 12 mm 10-12 mm 70 Shore A

Other dimensions can be customized according to the cable diameter, bundle size and required wrapping tightness.

Get Free Quote of Silicone Cable Wrap Tubing

Tenchy provides custom silicone cable wrap tubing designed to organize and protect fiber optic cables, communication cables and electrical wiring. The flexible spiral structure allows easy installation, cable branching and reliable protection against abrasion, scratching and tangling. Custom sizes, spiral pitches, colors, hardness levels and cut lengths are available to meet different cable management requirements. Send us your cable size or drawing for a quick quotation.

Products Categories
Silicone Tubing
Food Grade Silicone Tubing
Medical Grade Silicone Tubing
Medical Breathing Machine Tube
Custom Silicone Tubing
Thin Wall Silicone Tubing
Biopharma-Grade SS Wire Reinforced Silicone Hose
SS Wire Braided Reinforced Silicone Hose
Polyester Braided Reinforced Silicone Hose
Silicone Rubber Insulation Tube for Power Cables
Flex Silicone Milk Tubing
Silicone Heat Shrink Tubing
Reusable Silicone Straws
Customizable Small Diameter Silicone Tubing – 0.5mm ID
LED Silicone Tubing
Extruded Silicone Seal Gasket & Strips
Silicone Sealing Strip U,D,E,P Shape for Multi Sectors
High-Temperature Silicone Rubber Cords & Seals
Silicone Seal Rings & Gaskets
Food Container Seals
Custom Silicone O Ring
Affordable Spliced & Vulcanized Silicone O-Rings
Custom Molded Silicone Rubber Gaskets
Silicone Molded Products
Conductive Silicone Tubing & Sheet
Food Grade Silicone Gasket & Seal
Silicone Foam
Heat Resistant Silicone Foam Sheets, Pads & Rolls
Silicone Sponge Cords, Gaskets, Strips, Tubes & More
Liquid Silicone Rubber Products
Get A Free Quote
Contact Form Demo (#3)

Fiber Optic Cable Protection tubing Applications

Applications

  • Optical fiber cables
  • Fiber optic jumper cables and patch cords
  • Communication cables
  • Grounding wires
  • Electrical wiring harnesses
  • Data and signal cables
  • Control and instrumentation cables
  • Internal equipment wiring
  • Cable bundles in electrical cabinets
  • Data center and telecommunication cable management
  • Industrial machinery wiring protection
  • Household appliance wiring
silicone cable wrap tubing

Our Capability and Service

Tenchy has more than 18 years of experience in silicone extrusion and custom silicone products. We

can develop spiral wrap tubing in different dimensions, colors, hardness levels and packaging lengths

according to customer requirements.

Our team can also help customers select a suitable inner diameter and spiral pitch based on the cable

diameter, number of cables, bending requirements and operating environment. Samples can be

provided for installation and performance evaluation before mass production.

Installation Method

  1. Measure and cut the required length of spiral wrap tubing.

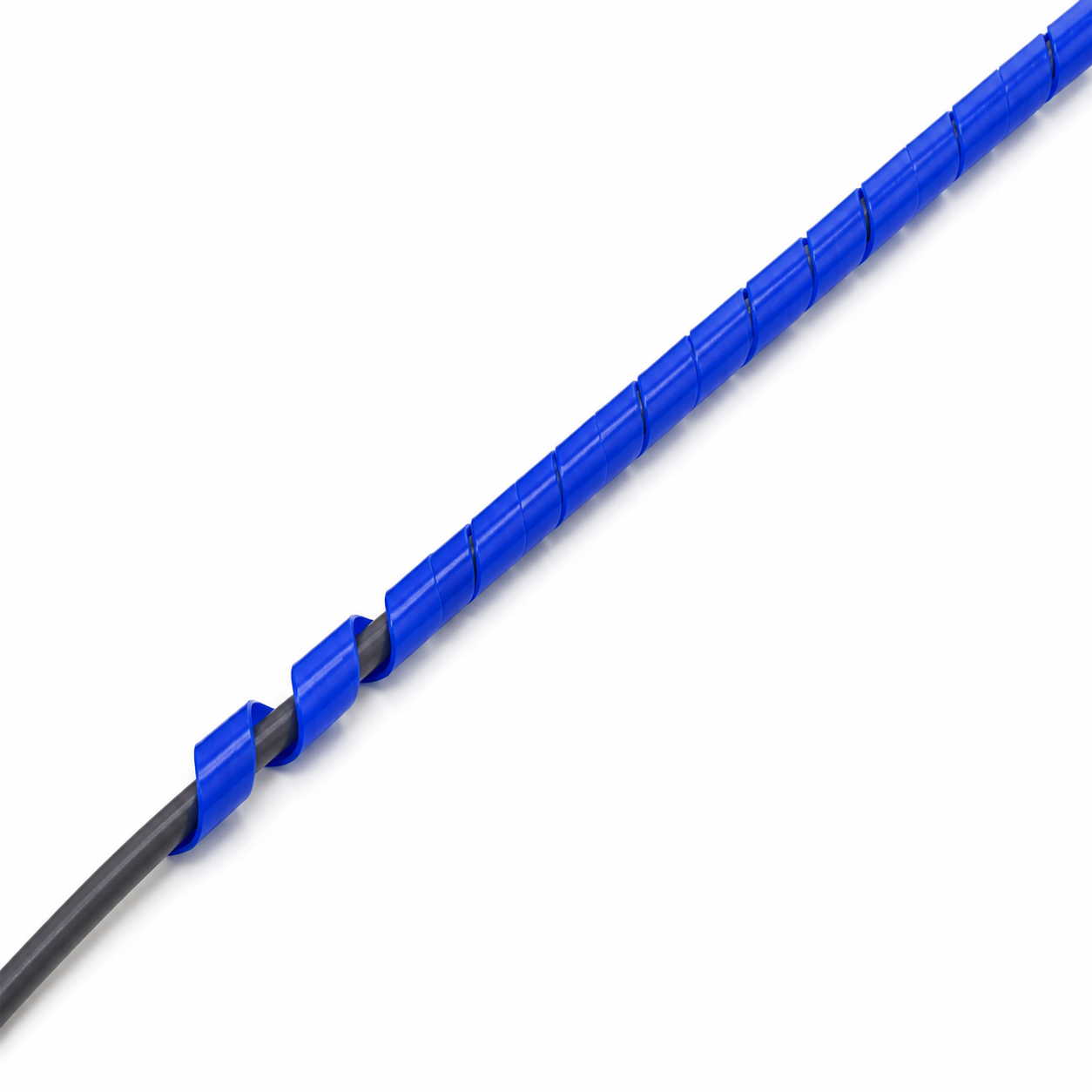

  2. Place one end of the wrap around the cable or cable bundle.
  3. Wind the tubing around the cable in the direction of the spiral.
  4. Continue wrapping evenly until the required section is fully protected.
  5. Individual wires can be pulled out through any spiral opening when a branch connection is required.
  6. Trim the end after installation if necessary.
  7. No special installation tools are normally required.

Packaging

  • Standard 100-meter coils
  • Custom roll lengths
  • Cut-to-length pieces
  • Individual PE bag and label packaging
  • Customized bags, labels and cartons available for bulk orders
